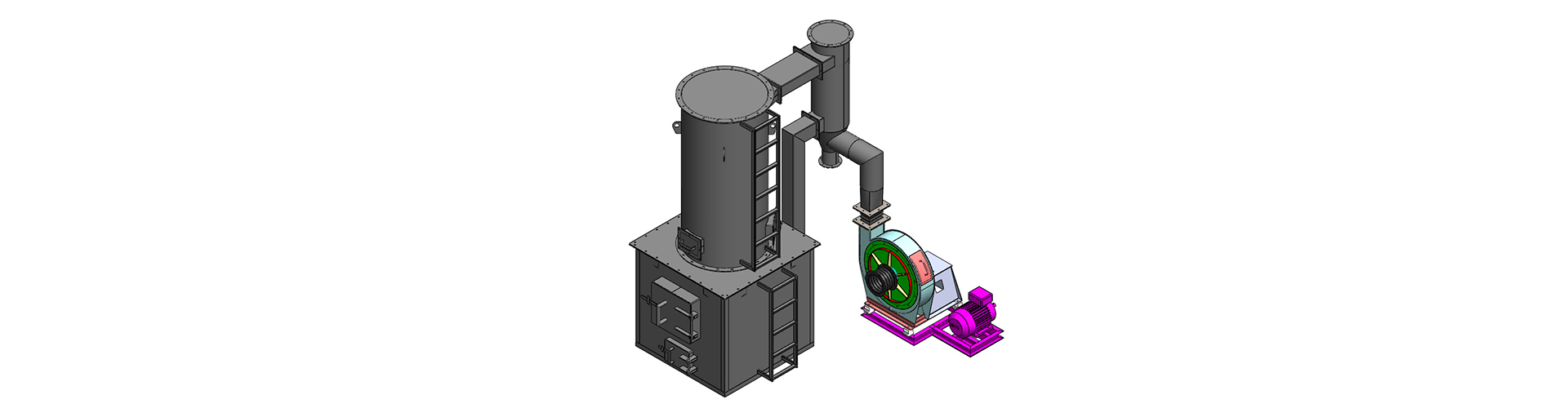

Wooden Veg Oil Heater

Wooden Veg Oil Heater

SPECIAL FEATURES

Convective Heat Exchanger Unit with S.S. 304 Seamless Coil --

Convective Coil heat exchanger is designed on coil-to-coil principle comprising Double coils fabricated out of High Temperature Best Boiler Quality Tubes (Seamless), Multi Start Closely Wound Double Coil assembly to make three flue gas Pass housed in M.S. Heavy fabricated Shell with inlet/outlet header.

M.S Furnace

Fabricated out of angle & Channel section covered by CR sheet and provided with necessary fuel feeding arrangement. Furnace is constructed with high quality Refractory fire bricks and insulation bricks with Fire-bar & 2 Nos. C.I. Door & bricks wall is designed in such a way that it ensures minimum heat loss. Mineral wood panels. The grate is fitted with best quality fire. The Fire Doors of Best Casting & Ash Doors Heavy Metal M.S. Plate.

TECHNICAL SPECIFICATIONS

Heat Capacity 1 Lk-cal To 8 Lakh Cal
Fuel Wood/ Coal
Electric Supply 415 V, AC 3 Phase, 55 Hz
Output Temperature 290 degrees centigrade
ID fan Example:- 14”, 2 HP, 1440 RPM (As per Req.)
Chimney (As Per Customer Site)
