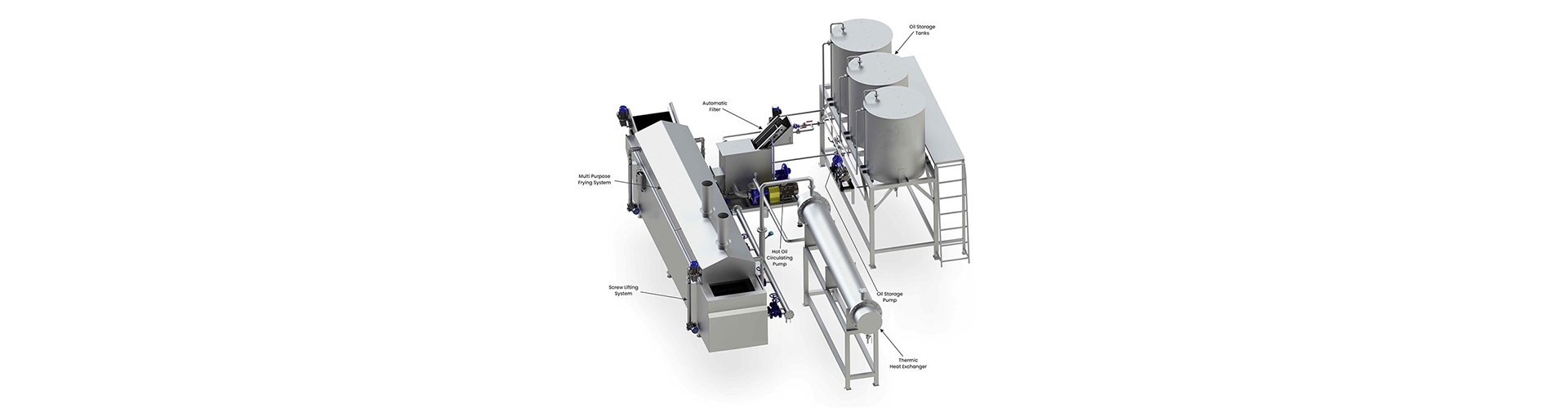

The Multi Purpose Continuous frying is Specially Designed For Non Floating Products it Has A dipping conveyor belt takes the Fried snacks through the frying oil.
The Multi Purpose Frying System is modern frying system which provides best frying environment which brings out the final product with best quality And The Multi Purpose snack fryer is suitable for a wide range of Floating & Non Floating Product.
The Conveyor filter will remove the smallest particles of starch from the frying oil. The oil is filtered by means of a V-shaped conveyor belt for arresting crumbs and burned product during process to enhance product shelf life and to maintain oil quality
The electrical control panel houses all the starters, temperature controller and variable frequency drives for operation of equipments.
| Model | FBF-300 | FBF-500 | FBF-700 | FBF-1000 |
|---|---|---|---|---|
| Output /in Hour | 300 Kg | 500 Kg | 700 Kg | 1000 Kg |
| Fuel Option | Conveyor Type Filtration System | |||
| Power Consumption in Wood | Diesel/Gas/Wood/Thermic | |||
| Power Consumption in Diesel/Gas/ Thermic | 11.5 Hp | 15 Hp | 17 Hp | 22 Hp |
| Oil Holding Capacity In System | 700 Litre | 1000 Litre | 1450 Litre | 1650 Litre |
| Length & Width Of Line | 21 Ft X 9.5 ft | 21 Ft X 10 ft | 22 Ft X 11.5 ft | 23 Ft X 12.5 ft |
| Material Of Construction | AISI 304 | AISI 304 | AISI 304 | AISI 304 |
