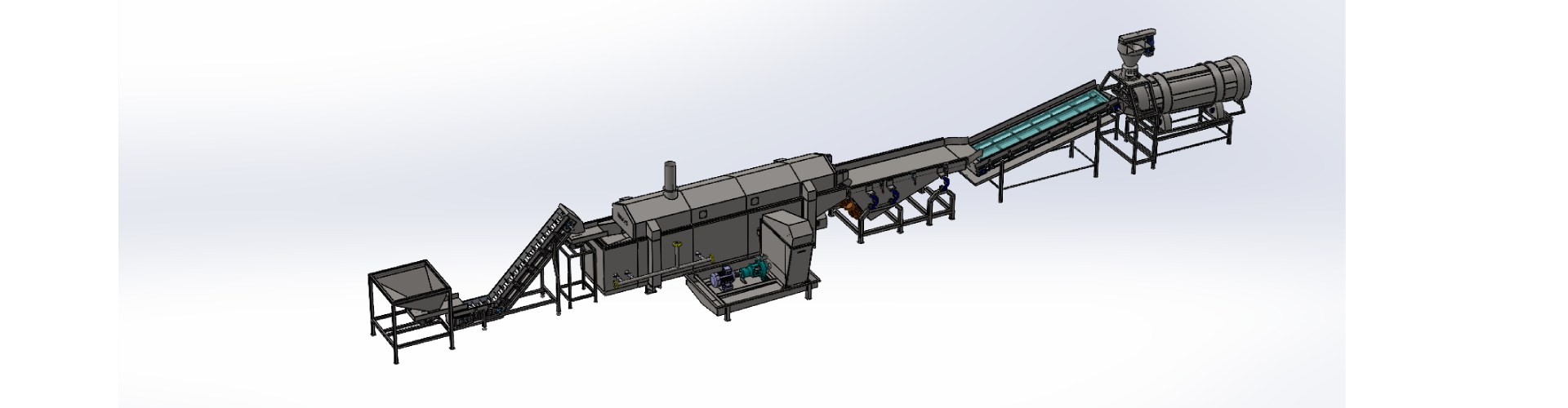

Rice Flakes (Poha) Frying Line

Rice Flakes (Poha) Frying Line

Exclusive/ Specialized fryer designed to deliver uniform processing, maximum expansion and best quality Rice Flakes (Poha) & Corn Flakes.

Indigenously built Programmable Logic Control (PLC) system controls multiple machines and process functions, pre-programmed product menus, and complete data management at the touch of a single screen touch enabled display screen. The PLC control panel is customized and designed specifically for the entire processing line providing user friendly operation and complete equipment control and data management at your fingertips.

SPECIAL FEATURES

Low Oil Holding & Higher Oil Turnover

Rice Flakes (Poha) being a highly oil sensitive product, this exclusively designed Fryer supports lower quantity of oil holding & faster oil turnover. This ensures better oil management as oil quality remains intact for a longer period.

Improved Product Quality with Maximum Expansion

A combination of specially designed Paddles & Offtake conveyor ensures optimum frying & oil pick up during frying process. The hot oil inlet & continuous filtration mechanism provide precise control of temperature, product flow & fines removal. The end result is an improved product with maximum expansion & better shelf life.

Faster Cooling

Poha unlike any other snack requires to be cooled faster after frying to reduce breakage & seasoning is optimum. Our Forced Cooling Conveyor ensures quick cooling at minimal floor space. Specially mounted product sensor along with an uniquely designed Zig Zag Tumbler interior ensure seasoning is optimum & the loss minimize.

Reduced Scrap & Residual Wastage

Poha comes with lot of fines & impurities which pose a threat during frying process. Our state-of-the-art Drum Filter ensures efficient scrap removal.

Best Designed Fryer for Corn Flakes

Tried & tasted for Corn Flakes frying as the expansion is the best ensuring drastic improvement in quality of end product.

TECHNICAL SPECIFICATIONS

PARAMETER PHFL - 500 (WITH SEASONING SYSTEM) PHFL - 1000 (WITH SEASONING SYSTEM)
Space Required (in ft) – Lenght x Width x Height 55 ft X 10 ft x 8 ft 65 ft X 13 ft x 8 ft
Production Output 500 Kg/Hr 1000 Kg/Hr
Oil 300 ltr 750 ltr
Heat Load (in kcal) 1.5 Lakh Kcal types of filter
3.0 Lakh Kcal Continuous Drum Type Continuous Drum Type
Material Of Construction AISS-304 Grade SS AISS-304 Grade SS
